The HyperGain® HG2427G high-performance reflector grid Wi-Fi
Antenna provides 26.5 dBi gain for long-range highly
directional applications. This includes point to point
systems, point to multi-point and wireless bridges in the
2.4 GHz ISM band as well as IEEE 802.11b and 802.11g. It can
be installed for either vertical or horizontal polarization.
This 27dBi grid antenna's construction features a die cast
aluminum reflector grid for superior strength and light
weight. The antenna's 4-piece reflector grid is simple to
assemble and significantly reduces shipping costs.
The HG2427G compliments the successful family of grid
antennas that include the popular HG2424G and HG2430G models,
offering customers the option to select the antenna that
best fits their network and communication requirements.
Orders for the HG2427G can be taken now, with expected
delivery by mid-August 2008.
|
|
Details for this Antenna product |
| HyperLink Item # |
HG2427G |
|
|
|
| Manufacturer |
Hyperlink |
|
|
|
| RoHS Status |
RoHS Compliant  (More) |
|
|
|
|
|
|
Applications for this Antenna product |
|
2.4 GHz ISM Band
IEEE 802.11b, 802.11g Wireless LAN & IEEE 802.11n
(Pre-N, Draft-N) Applications
WiFi Systems & Long-range Directional Applications
Point to Point Systems & Point to Multi-point Systems
Wireless Bridges, Backhaul Applications & Wireless Video
Systems
|
|
|
|
|
|
Specifications
Electrical Specifications
| Frequency |
2400-2500 MHz |
| Gain |
26.5 dBi |
| Horizontal Beam Width
|
6.5 degrees |
| Vertical Beam Width
|
8 degrees |
| Front to Back Ratio |
30 dB |
|
Electrical downtilt (°) |
0 |
| Impedance |
50 Ohm |
| Max. Input Power |
100 Watts |
| VSWR |
< 1.4:1 avg. |
| Connector Type |
Integral N-Female Connector |
| Lightning Protection
|
DC Short |
Mechanical Specifications
| Weight with mounting
bracket |
6.8 lbs. (3.08 kg) |
| Grid Dimensions |
47.2 x 35.43 in. (1200 x 900 mm) |
| Mounting Hardware
Diameter |
1.96 - 4.5” in. (50 – 115 mm) |
|
Mechanical Tilt |
H: 360°
V: ±45° |
| RoHS Compliant |
Yes |
| Operating Temperature |
-40° F to 140° F (-40° C to 60° C) |
| Rated wind
velocity (mile/h) |
134 |

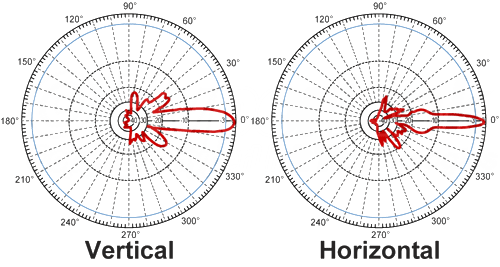

RF Antenna Gain Patterns
|
